FEATURES & APPLICATIONS
Features
- High resistance – to meet geometrically challenging requirements, e.g. reduced member thickness or smallest spacing and edge distances
- Best-in-class seismic C2 load values
- Suitable for hammer-drilled and diamond-cored holes (such as from DD-30W and DD EC-1 diamond drilling tools)
- More sizes are available, contact us
Applications
- Particularly suited to safety-relevant applications in corrosive environments
- All safety-relevant fastenings in seismic loading conditions, category C1 for non-structural elements and category C2 for structural elements
- All safety-relevant fastenings in cracked and uncracked concrete
PRODUCT INFORMATION

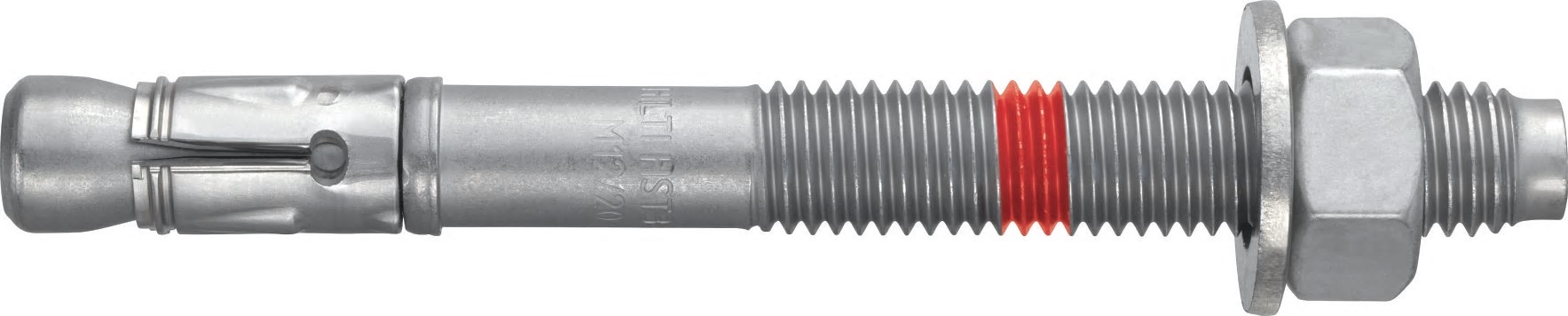

Stud anchor HST3-R M10x90 30/10
- Item Number: 2105864
- # of items in Package: 50
Stud anchor HST3-R M10x100 40/20
- Item Number: 2105865
- # of items in Package: 50
Stud anchor HST3-R M10x110 50/30
- Item Number: 2105866
- # of items in Package: 40
Stud anchor HST3-R M10x130 70/50
- Item Number: 2105867
- # of items in Package: 25
Stud anchor HST3-R M10x160 100/80
- Item Number: 2105868
- # of items in Package: 25
Stud anchor HST3-R M12x105 30/10
- Item Number: 2105869
- # of items in Package: 25
Stud anchor HST3-R M12x115 40/20
- Item Number: 2105870
- # of items in Package: 25
Stud anchor HST3-R M12x125 50/30
- Item Number: 2105871
- # of items in Package: 25
Stud anchor HST3-R M12x145 70/50
- Item Number: 2105872
- # of items in Package: 25
Stud anchor HST3-R M12x165 90/70
- Item Number: 2105873
- # of items in Package: 25
Stud anchor HST3-R M12x185 110/90
- Item Number: 2105874
- # of items in Package: 25
Stud anchor HST3-R M12x215 140/120
- Item Number: 2105875
- # of items in Package: 25
Stud anchor HST3-R M16x135 35/15
- Item Number: 2105876
- # of items in Package: 12
Stud anchor HST3-R M16x145 45/25
- Item Number: 2105877
- # of items in Package: 12
Stud anchor HST3-R M16x170 70/50
- Item Number: 2105878
- # of items in Package: 12
Stud anchor HST3-R M16x220 120/100
- Item Number: 2105879
- # of items in Package: 12
Stud anchor HST3-R M16x260 160/140
- Item Number: 2105880
- # of items in Package: 12
Stud anchor HST3-R M16x300 200/180
- Item Number: 2105881
- # of items in Package: 12
Stud anchor HST3-R M10x100 40/20 BW
- Item Number: 2105885
- # of items in Package: 40
Stud anchor HST3-R M12x115 40/20 BW
- Item Number: 2105886
- # of items in Package: 25
Stud anchor HST3-R M16x145 45/25 BW
- Item Number: 2105887
- # of items in Package: 12
Stud anchor HST3-R M8x75 -/10
- Item Number: 2105896
- # of items in Package: 50
Stud anchor HST3-R M8x95 -/30
- Item Number: 2105897
- # of items in Package: 50
Stud anchor HST3-R M8x115 -/50
- Item Number: 2105898
- # of items in Package: 50
Stud anchor HST3-R M20x170 -/30
- Item Number: 2105899
- # of items in Package: 5
Stud anchor HST3-R M20x200 -/60
- Item Number: 2105900
- # of items in Package: 5
Stud anchor HST3-R M24x200 -/30
- Item Number: 2105901
- # of items in Package: 5
Stud anchor HST3-R M24x230 -/60
- Item Number: 2105902
- # of items in Package: 5
Stud anchor HST3-R M8x75 -/10 BW
- Item Number: 2105904
- # of items in Package: 50
Stud anchor HST3-R M10x70 10/-
- Item Number: 2113976
- # of items in Package: 50
Stud anchor HST3-R M10x80 20/-
- Item Number: 2113977
- # of items in Package: 50
Stud anchor HST3-R M12x85 10/-
- Item Number: 2114051
- # of items in Package: 25
Stud anchor HST3-R M12x95 20/-
- Item Number: 2114052
- # of items in Package: 25
Stud anchor HST3-R M16x115 15/-
- Item Number: 2114057
- # of items in Package: 12
Stud anchor HST3-R M8x95 -/30 BW
- Item Number: 2138684
- # of items in Package: 50
TECHNICAL DATA
- Material, corrosion: Stainless steel, A4
- Head configuration: Externally threaded
- Drilling method (AS): Hammer drilling, Air-compressed drilling, Hollow drill bit drilling, Diamond drilling
- Installation tools: TE 6-A36, SIW 6AT-A22 Impact wrench, DD 30-W Core drill
- SAFEset: Yes
- PROFIS software: Yes
- Product class: Ultimate
