FEATURES & APPLICATIONS
Features
- ETA-approved torquing when used with an SIW 14-A or 22-A impact wrench and S-TB torque-controlled socket wrench
- Fast and easy anchor setting with the HS-SC setting tool and S-TB torque-controlled socket wrench
- High loads (optimal utilization of the concrete strength)
- Excellent edge and spacing distances
- Three embedment depths offering maximal flexibility
Applications
- Wide range of outdoor or similar fastening applications in concrete in corrosive environments
- Fastening facade brackets
- Fastening columns and beams
- Fastening brackets and channels
PRODUCT INFORMATION

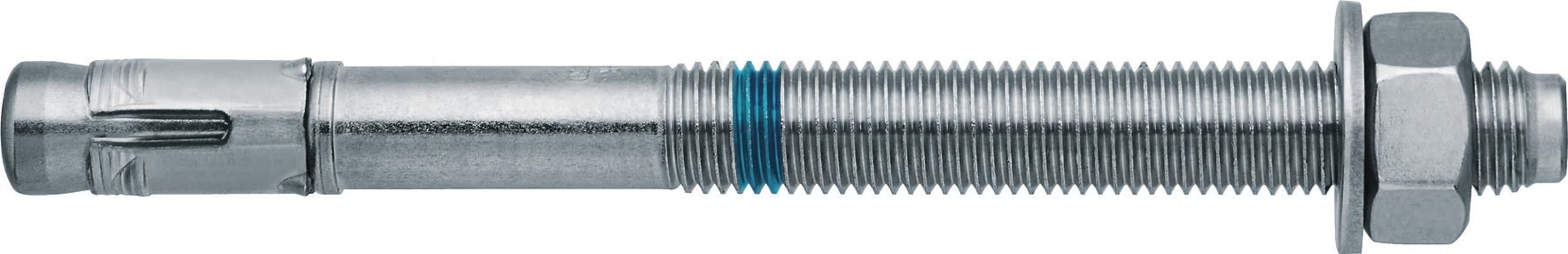

Stud anchor HSA-R M8x55 5/-/-
- Item Number: 2004197
- # of items in Package: 100
Stud anchor HSA-R M8x70 20/10/-
- Item Number: 2004198
- # of items in Package: 100
Stud anchor HSA-R M8x85 35/25/-
- Item Number: 2004199
- # of items in Package: 80
Stud anchor HSA-R M8x105 55/45/15
- Item Number: 2004200
- # of items in Package: 50
Stud anchor HSA-R M10x68 5/-/-
- Item Number: 2004201
- # of items in Package: 50
Stud anchor HSA-R M10x83 20/10/-
- Item Number: 2004202
- # of items in Package: 50
Stud anchor HSA-R M10x98 35/25/-
- Item Number: 2004203
- # of items in Package: 40
Stud anchor HSA-R M10x113 50/40/10
- Item Number: 2004204
- # of items in Package: 40
Stud anchor HSA-R M10x133 70/60/30
- Item Number: 2004205
- # of items in Package: 25
Stud anchor HSA-R M10x153 90/80/50
- Item Number: 2004206
- # of items in Package: 25
Stud anchor HSA-R M12x85 5/-/-
- Item Number: 2004207
- # of items in Package: 25
Stud anchor HSA-R M12x100 20/5/-
- Item Number: 2004208
- # of items in Package: 25
Stud anchor HSA-R M12x115 35/20/-
- Item Number: 2004209
- # of items in Package: 25
Stud anchor HSA-R M12x145 65/50/15
- Item Number: 2004210
- # of items in Package: 25
Stud anchor HSA-R M12x175 95/80/45
- Item Number: 2004211
- # of items in Package: 25
Stud anchor HSA-R M12x205 125/110/75
- Item Number: 2004212
- # of items in Package: 25
Stud anchor HSA-R M12x225 145/130/95
- Item Number: 2004213
- # of items in Package: 25
Stud anchor HSA-R M16x102 5/-/-
- Item Number: 2004214
- # of items in Package: 16
Stud anchor HSA-R M16x117 20/5/-
- Item Number: 2004215
- # of items in Package: 16
Stud anchor HSA-R M16x137 40/25/-
- Item Number: 2004216
- # of items in Package: 16
Stud anchor HSA-R M16x182 85/70/30
- Item Number: 2004217
- # of items in Package: 16
Stud anchor HSA-R M6x50 5/-/-
- Item Number: 2036314
- # of items in Package: 200
Stud anchor HSA-R M6x65 20/10/-
- Item Number: 2036315
- # of items in Package: 200
Stud anchor HSA-R M6x85 40/30/10
- Item Number: 2036316
- # of items in Package: 100
Stud anchor HSA-R M20x125 10/-/-
- Item Number: 2036317
- # of items in Package: 10
Stud anchor HSA-R M20x170 55/30/15
- Item Number: 2036318
- # of items in Package: 10
Stud anchor HSA-R2 M8x70 20/10/-
- Item Number: 2004218
- # of items in Package: 50
Stud anchor HSA-R2 M10x83 20/10/-
- Item Number: 2004219
- # of items in Package: 25
Stud anchor HSA-R2 M12x100 20/5/-
- Item Number: 2004220
- # of items in Package: 25
Stud anchor HSA-R2 M12x115 35/20/-
- Item Number: 2004221
- # of items in Package: 16
Stud anchor HSA-R2 M16x137 40/25/-
- Item Number: 2004222
- # of items in Package: 100
TECHNICAL DATA
- Material, corrosion: Stainless steel, A4
- Head configuration: Externally threaded
- Approvals / test reports: ETA
- Base materials: Concrete (uncracked)
- Type of fastening: Pre-fastening, Through-fastening
- Drilling method (AS): Hammer drilling, Hollow drill bit drilling, Diamond drilling
- Installation tools: TE 6-A36
- SAFEset: No
- PROFIS software: Yes
